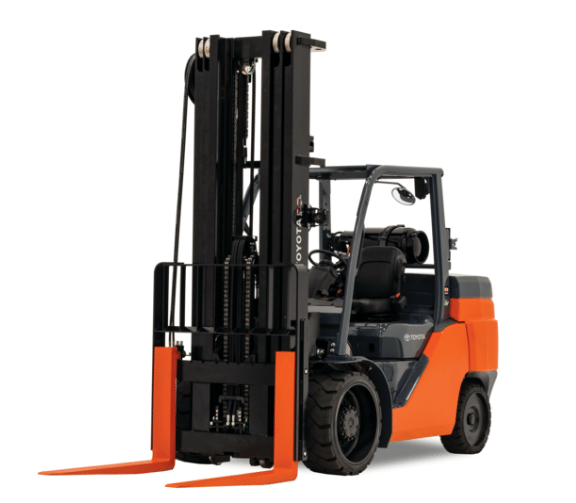

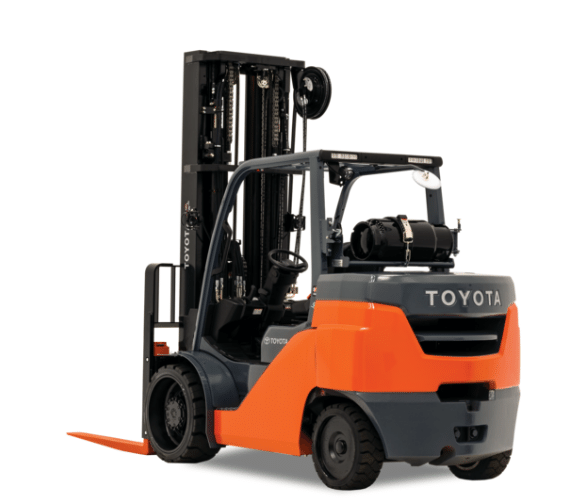

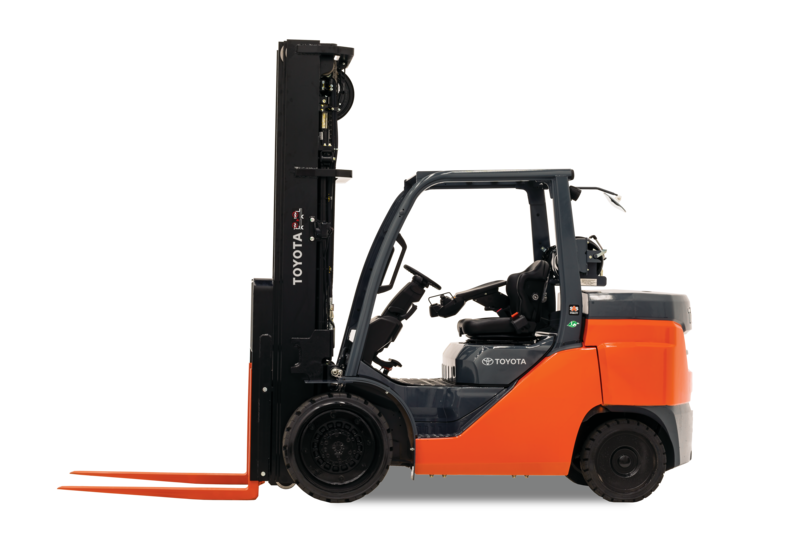

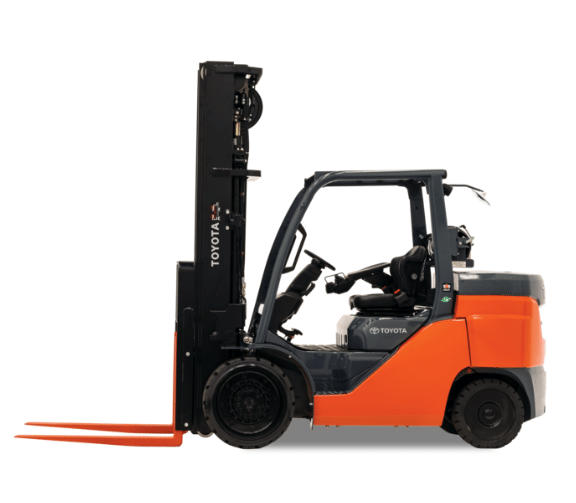

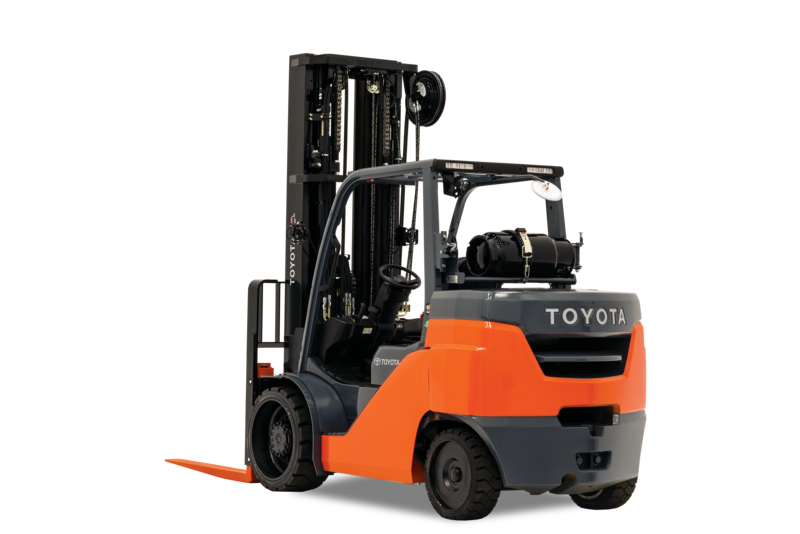

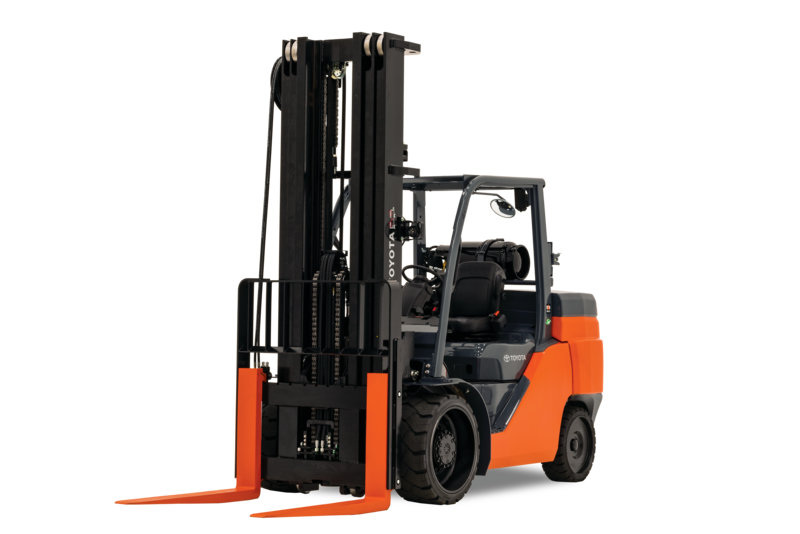

Toyota Large IC Cushion Forklift

8,000 lb. – 15,500 lb. Capacity

Horsepower: 84 – 89 hp
Maximum Turning Radius: 90 – 99.5 in.
Machine Weight: 12,640 – 16,250 lbs.
Maximum Travel Speed: 13 mph

Request a Quote

Product added to Quote successfully!
View Quote

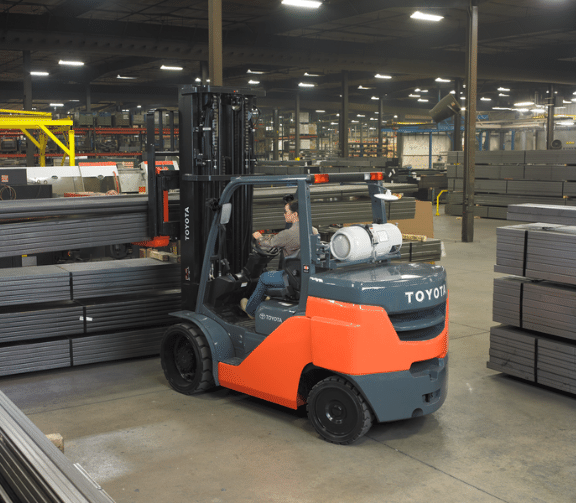

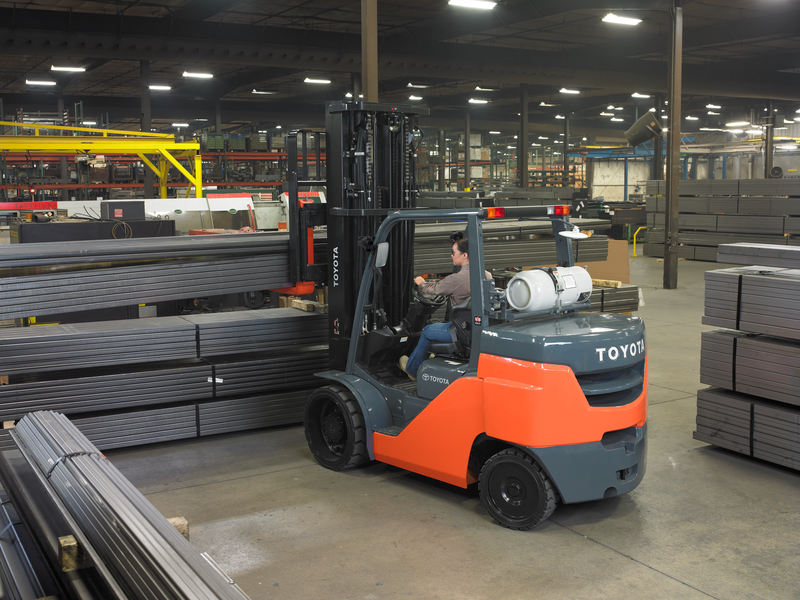

The Toyota Large IC Cushion Forklift is built to tackle your toughest loads while using less fuel, producing fewer emissions, navigating 13-foot and 14-foot aisles, and providing up to 240 inches of lift. Meet your indoor heavy load solution.

Big enough to handle your most demanding jobs. Fuel efficient enough to save you money while boosting productivity. The Toyota Large IC Cushion Forklift isn’t just strong, it’s smart. And because it’s a Toyota — proven the most dependable, reliable and safe line of forklifts you can buy — it’s also a smart choice.

Rear assist grip with horn option makes reverse travel more comfortable and keeps operator’s hands safely within compartment
Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
Fully sealed air intake mounted up high to limit low-lying dust and debris entering engine
Engine protection system automatically reduces output if coolant temperature rises to potentially damaging levels
Independent brake and inching control pedals for excellent stopping power and precise positioning

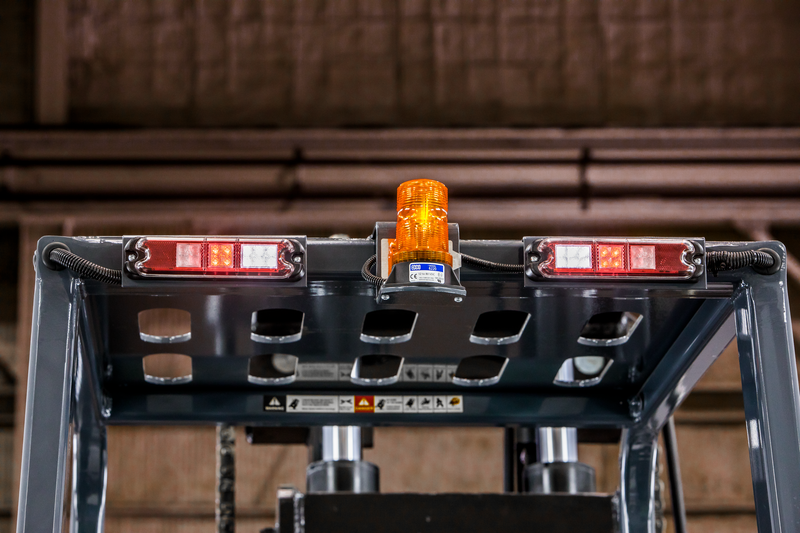

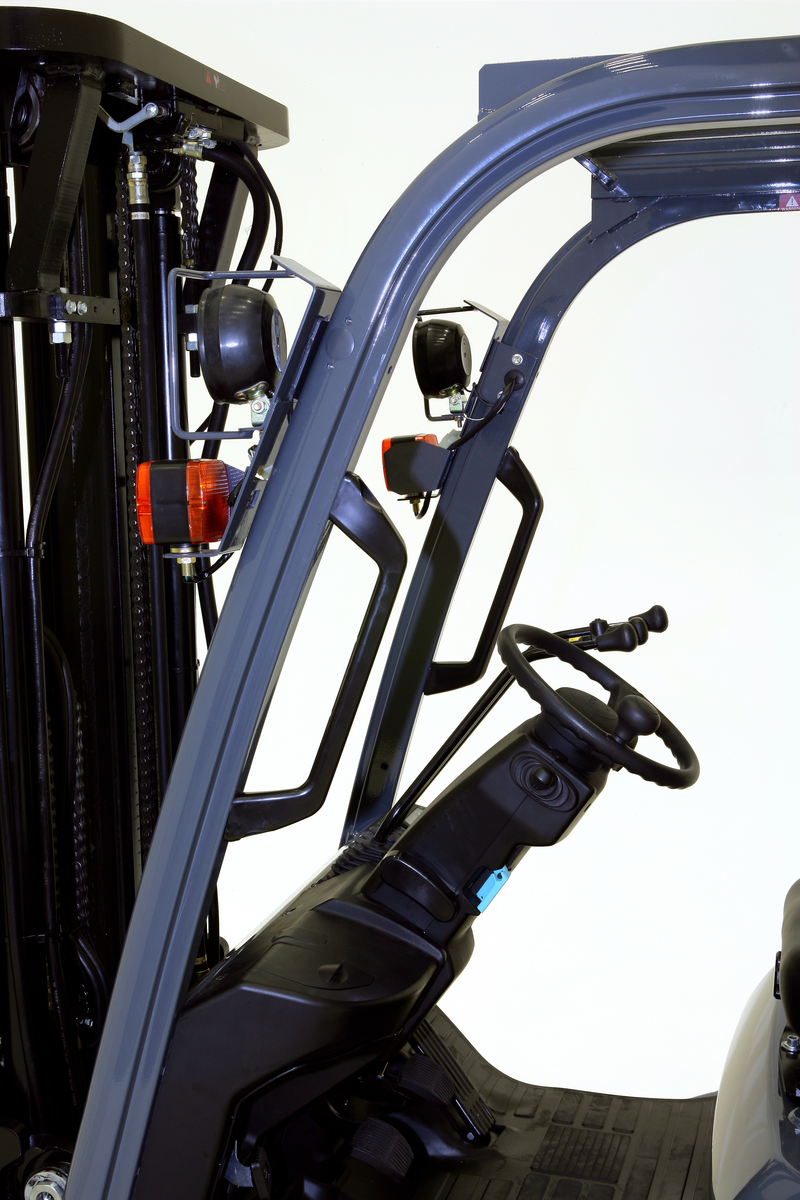

Welded, roll-formed overhead guard pillars provide maximum operator protection with improved entry/exit and load visibility
System of Active Stability™ (SAS) acts automatically in uncertain situations to protect operator, and reduce product and forklift damage
Load-sensing power steering for smooth, responsive operation with little vibration and shock, helping reduce operator fatigue

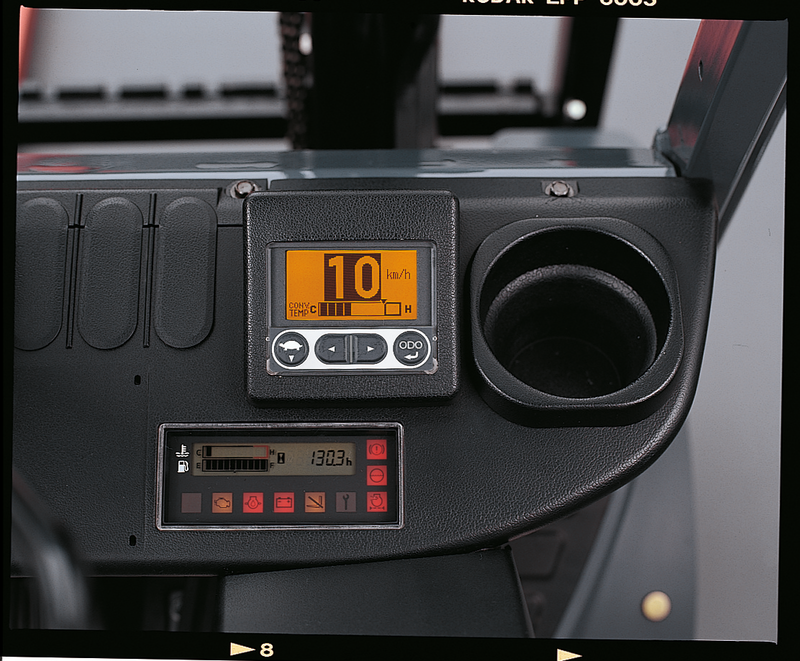

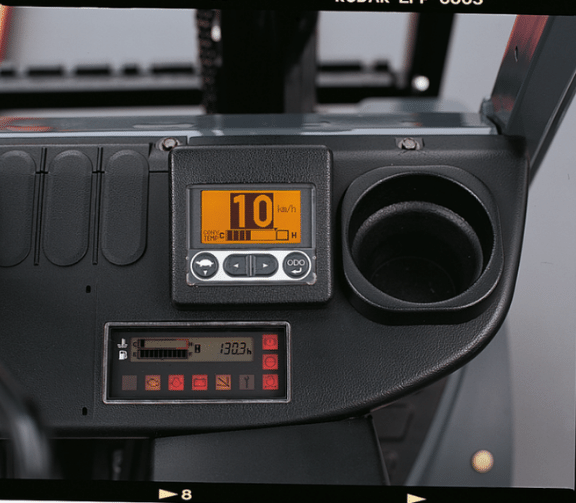

Dash-mounted instrument display
11.8”-diameter two-spoke steering wheel
Load-sensing power steering

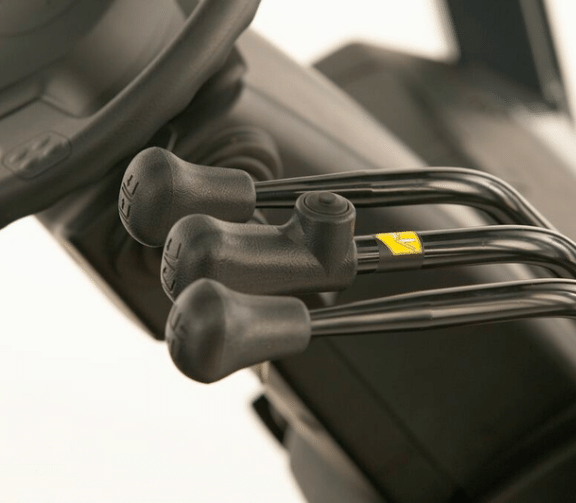

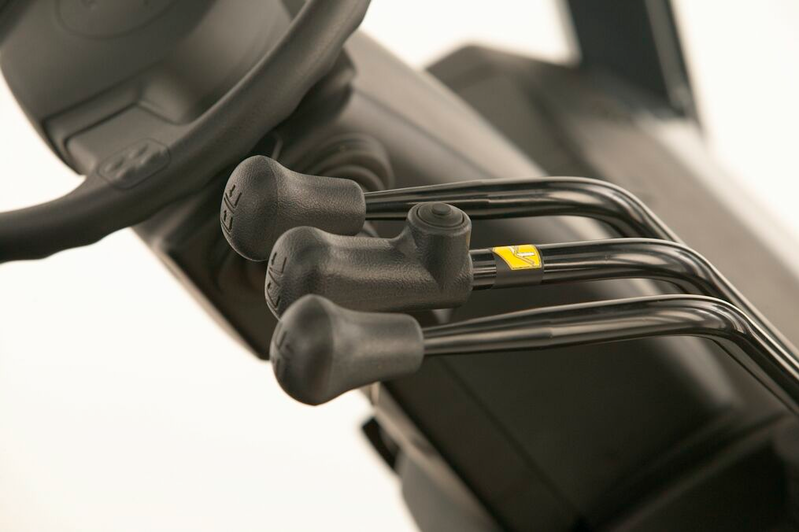

Cowl-mounted hydraulic control levers with rubber boot covers

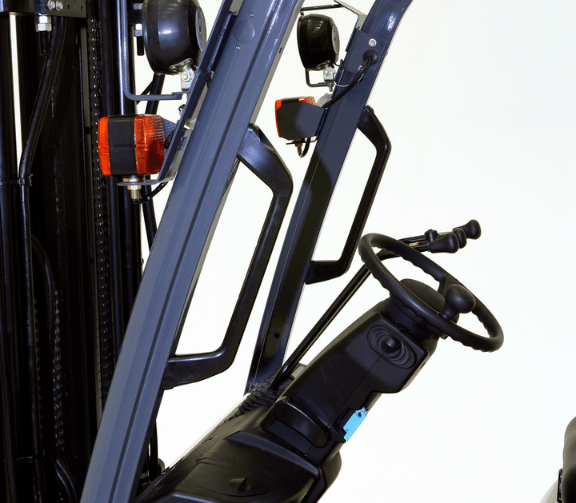

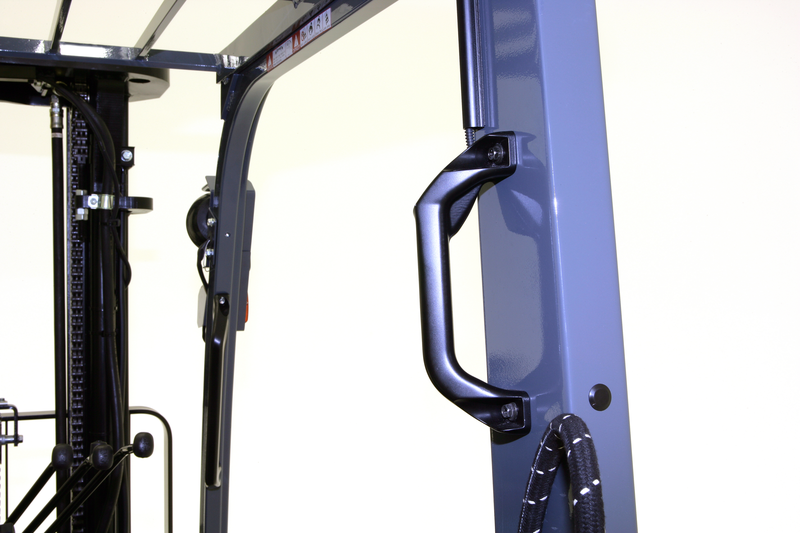

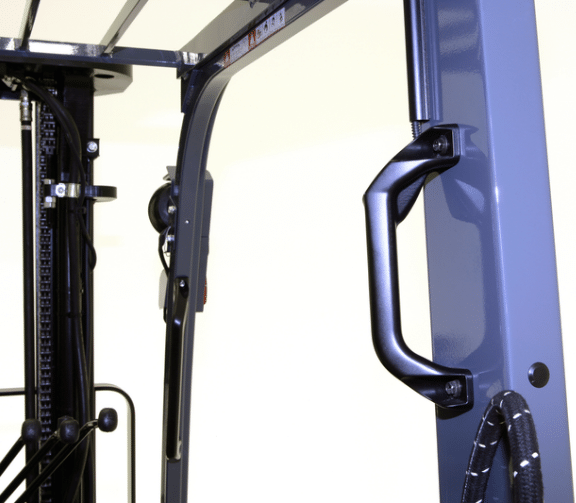

12”-long dual operator assist grips
Low, wide entry steps
Dash-integrated amenity tray & oversized cup holder
Slim profile, tilt steering column
Low-profile front cowl

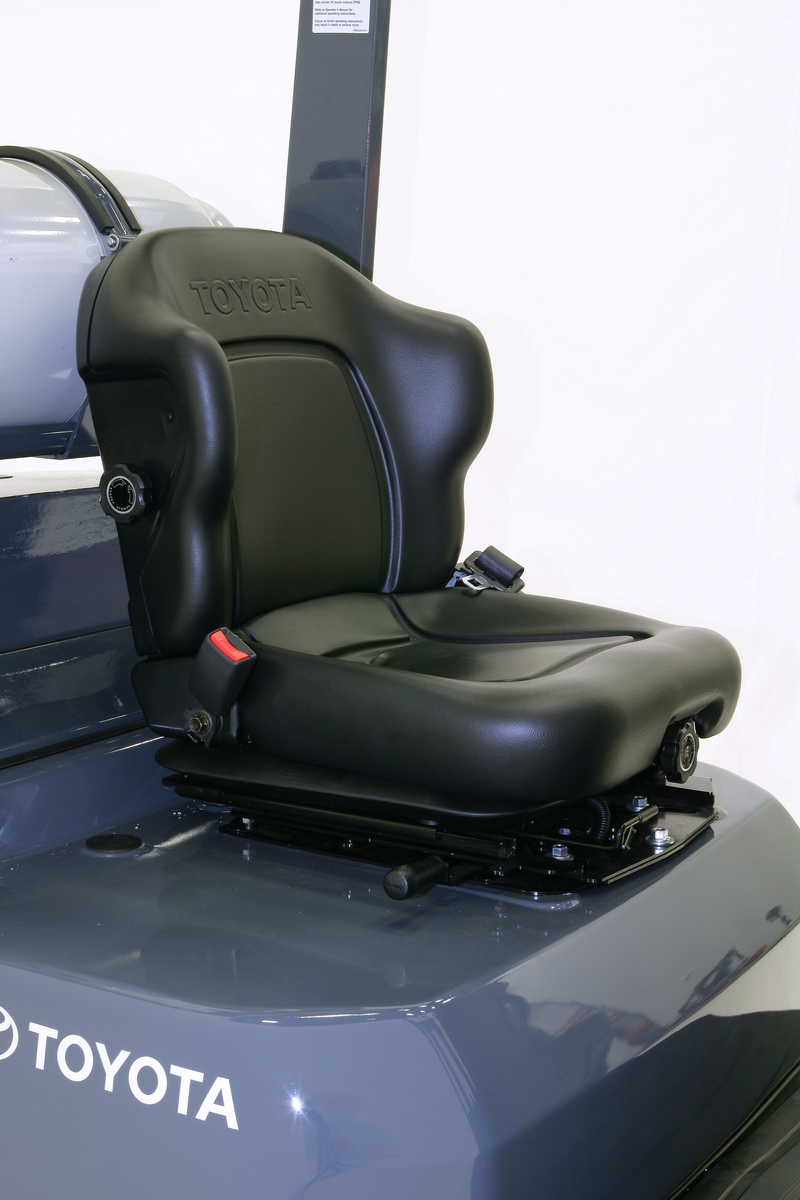

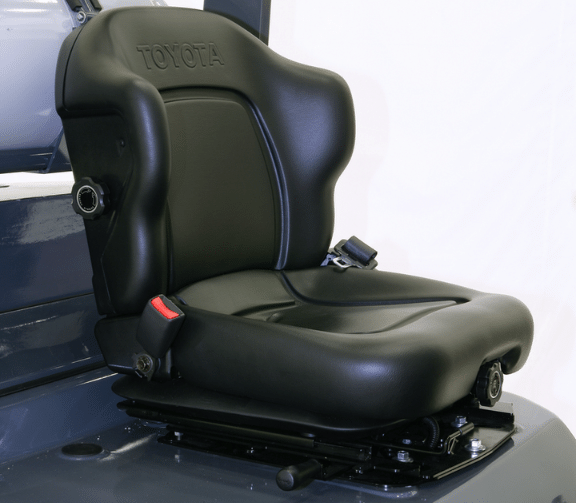

Vinyl 4-way adjustable full-suspension seat
Heavy-duty non-slip floor mat
Non-cinching seatbelt

Toyota 4-cylinder, 3.7-liter, OHV engine (1FS)
Distributor-less ignition system

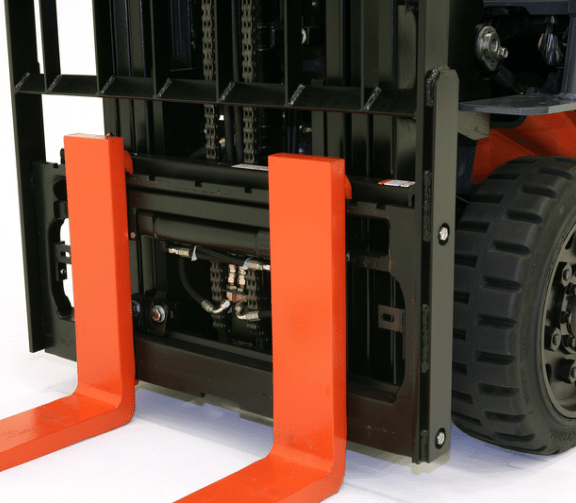

Limited free-lift 2-stage mast (V)
Adjustable headlights with guards
Double-action parking brake (hand)
Alternator with built-in regulator (60A)
Integrated monitoring system – includes:

-Digital hour meter display
-Engine coolant temperature gauge
-Check engine light
-Engine oil pressure warning light
-Battery charge warning light
-OPSS activation light
