Genie S-60 X & S-65 Boom Lift
genie s-60x boom lift
genie s-65 boom lift

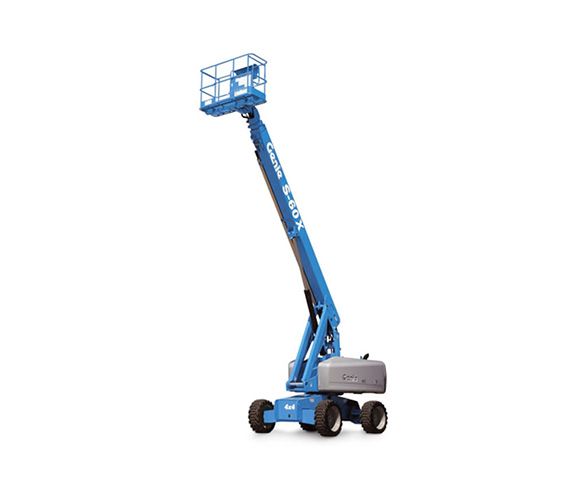

Genie S-60 X & S-65 Boom Lift

  • 64 – 71 ft. Working Height
  • 500 lbs. Unrestricted Capacity
  • 1,000 lbs. Restricted Capacity
  • 56 ft. 2 in. Maximum Horizontal Reach
  • 20,570 – 26,960 lbs. Machine Weight

Documents

Product Documents

  • Genie Boom Lift Full Line Brochure
  • Genie S-60 X & S-65 Boom Lift Spec Sheet
Request a Quote
  • Description
  • Advantages
  • Standard Features
  • Popular Options

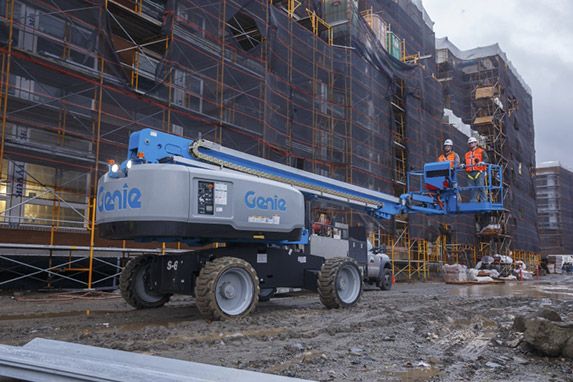

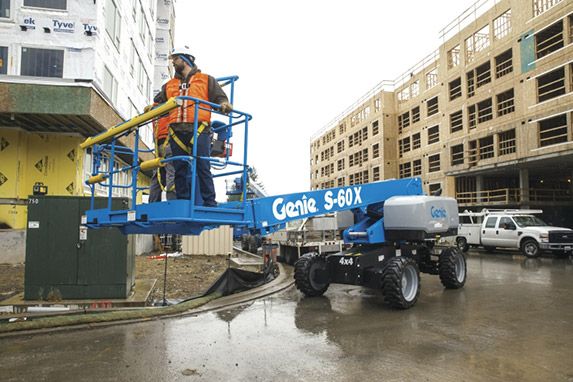

Engineered to maximize height and outreach, the Genie S-65 telescopic boom lift allows operators to safely work at height. The Genie S-60 X Boom Lift easily completes heavier lift tasks on construction and industrial job sites with its dual lift capacity of 500 lbs. unrestricted and 1,000 lbs. restricted.

Telescopic booms offer the greatest amount of horizontal reach when compared to other boom lift designs, for maximum combination of height and outreach. Maneuver in tight spaces. For jobs in confined spaces, the Genie S-60 X and S-65 boom lifts allow operators to turn full-circle to reach tasks quickly with the 360˚ continuous rotation turntable. Reduced tailswing also makes these units easy to work in tight work areas. Plus, with fixed-width axles, simply unload from the transport trailer and go. There’s no need for additional setup effort.

  • 360-degree continuous rotation turntable for quick positioning
  • Virtual pivot primary boom aligns the machine’s center of gravity to work efficiently with a lower machine weight
  • Positive traction drive maintains equal power to all drive wheels
  • Active oscillating axle option enhances traction on rough terrain
  • Smooth boom functions for finer control
  • Self-leveling platform
  • 160° hydraulic platform rotation
  • Proportional joystick controls
  • Fuel select switch on platform and ground control panels (Gas/LPG models)
  • Drive enable
  • AC power cord to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • 360° continuous turntable rotation
  • Positive traction drive
  • Two speed wheel motors
  • 12 V DC auxiliary power
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • Swing out engine tray
  • Intake air heater (Deutz engine)
  • Platform swing gate
  • Half-mesh platform inserts with swing gate
  • Platform top auxiliary rail
  • Welder Ready package
  • Weld leads to platform
  • Air line to platform
  • Hydraulic oil cooler
  • Biodegradable hydraulic oil
  • Hostile environment kit
  • Deluxe hostile environment kit
  • Aircraft protection package (6 ft platform)
  • Thumb rocker steer
  • Tool tray
  • Alarm package
  • Panel cradle package (tri-entry platform only)
  • Lockable platform control box covers
  • Second battery
  • Tow package
  • Work light package
  • Operator Protective Structure
  • Engine gauge package
  • AC generator packages (110V/-220V/50Hz, 3000W)
  • Cold Weather Packages
  • Diesel scrubber/spark arrestor muffler (catalytic muffler)
  • LPG tank 33.5 lbs (15.19 kg) capacity
  • Intake air pre-cleaner
